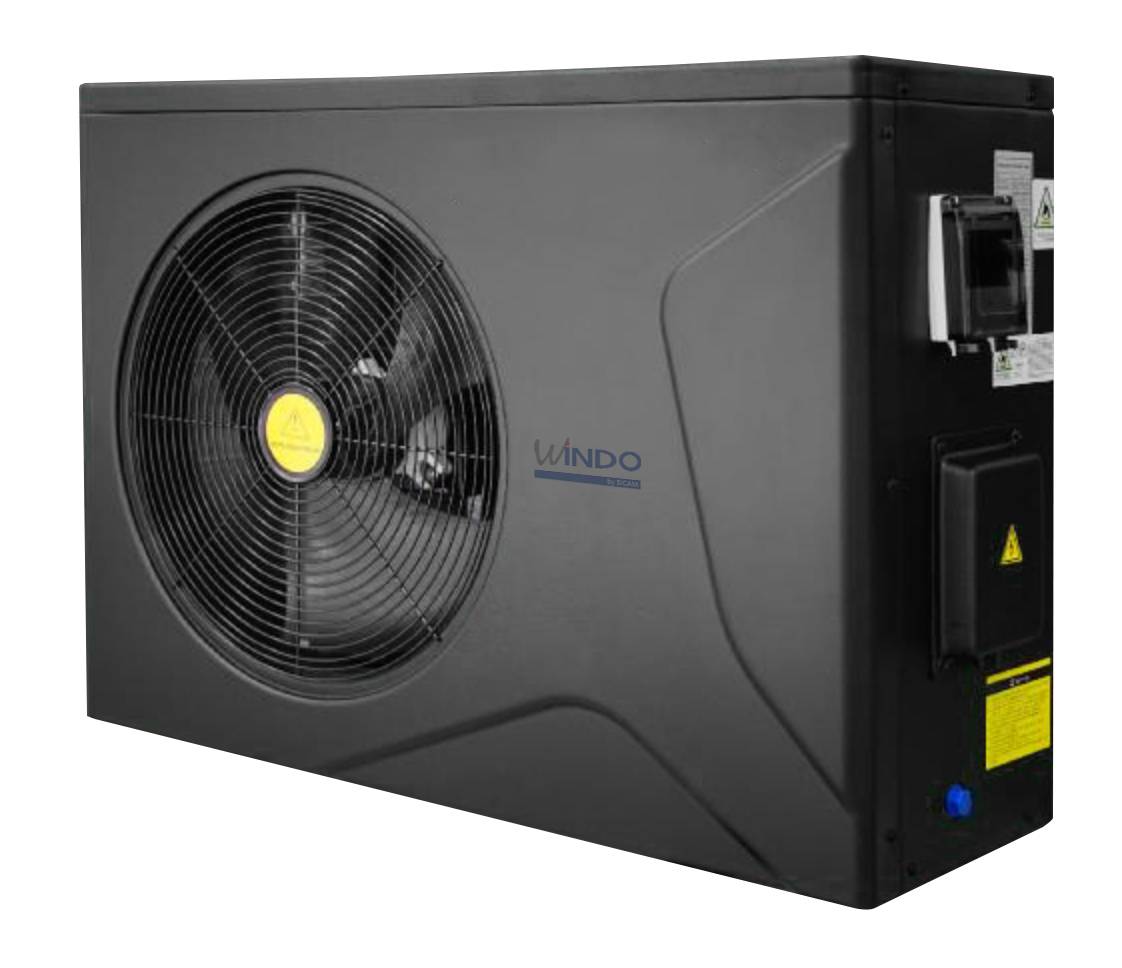

These are devices for heating the water in the swimming pool in order to maintain an ambient temperature even in mid-season. They are suitable for both individuals and professionals.

Features:

• Models: PAC-H100

• Power supply:220~240V, 50Hz, 1Ph

• Courant: 1,7 – 16,6 A

• Amperage: 19.5A

• Power (Heating 1):5.71 – 23 kW

• Power consumption (Heating 1):0.38 – 3.78 kW

• COP (Hot 1): 15.03 – 6.08

• Power (Heat 2): 5.33 – 18.55 kW

• Power consumption (Heating 2): 0.64 – 3.68 kW

• COP (Hot 2): 8.33 – 5.04

• Power (Heat 3): 4.64 – 16.14 kW

• Power consumption (Heating 3):0.59 – 3.38 kW

• COP (Hot 3):7.91 – 4.78

• Power (Cold):5.30 – 13.10 kW

• Absorbed power (cold):0.73 – 3.34 kW

• COP (Cold):7.26 – 3.92

• Water flow:8 – 10 m³/h

• Water connection diameter: 50 mm

• Operating temperature:-25 – 43 °C

• Refrigerant gas / Quantity: R32 / 2.1 kg

• CO2 equivalent: 1.4 t

• Refrigerant gas pressure (Min./Max.):1.5 / 4.15 MPa

• Dimensions:1085 x 480 x 725 mm

• Dimensions emballage:1180 x 500 x 880 mm

• Net / Gross Weight: 75.5 / 94.5 kg

• Sound level: 42 – 53 dB(A)

• Waterproof level:IPX4

• Control: LCD control panel on the device +

• WiFi via application smartphone

• Recommended pool size: up to 100m²

• *Power and consumption under the following conditions:

– Heating 1: Inlet/outlet water temperature: 26°C / 28°C; Ambient temperature: 26°C / Hum. 70%

– Heating 2: Inlet/outlet water temperature: 26°C / 28°C; Ambient temperature: 15°C / Hum. 70%

– Heating 3: Inlet/outlet water temperature: 26°C / 28°C; Ambient temperature: 7°C / Hum. 70%

– Cold: Inlet/outlet water temperature: 28°C / 26°C; Ambient temperature: 35°C / Hum. CN
