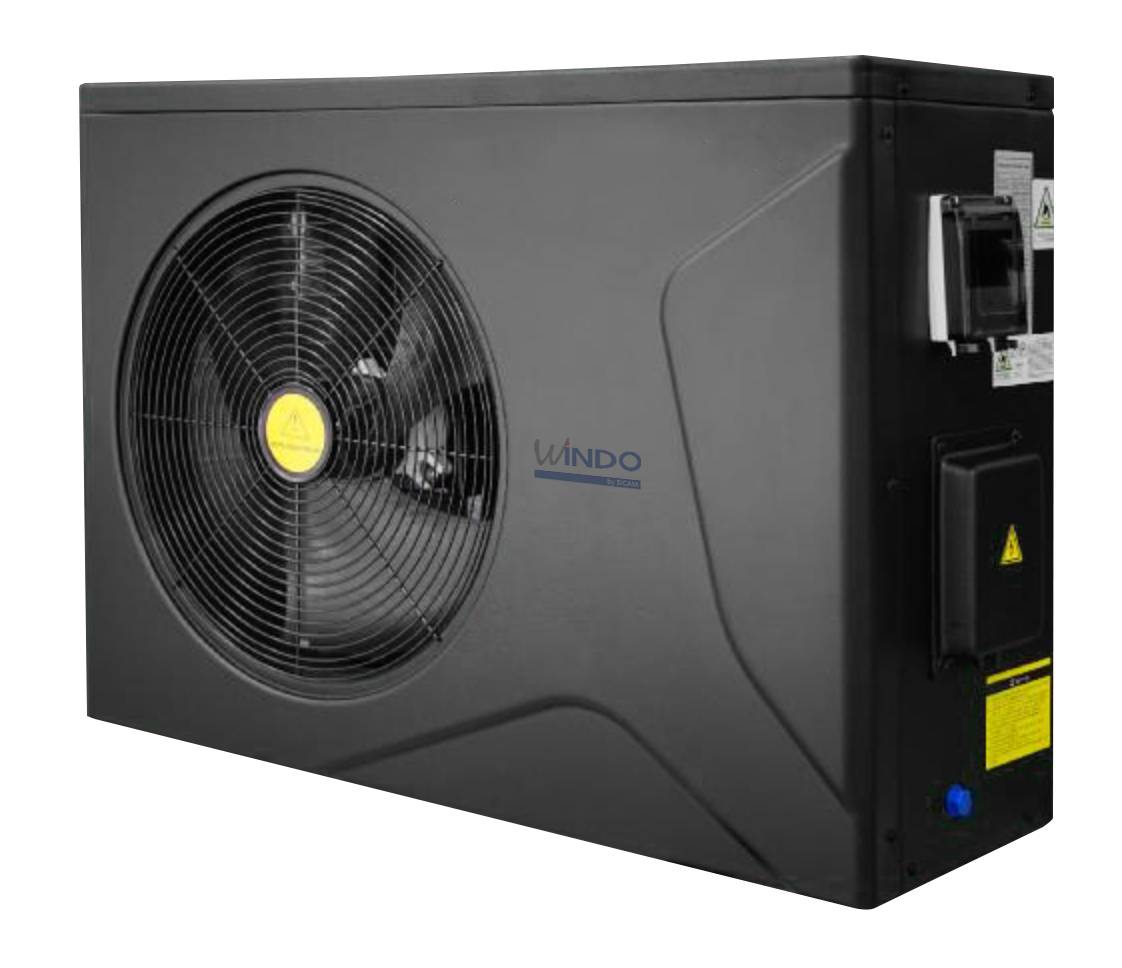

WIFI swimming pool heat pump 60 m3

These are devices for heating the water in the swimming pool in order to maintain an ambient temperature even in mid-season. They are suitable for both individuals and professionals.

Features:

• Models: PAC-H60

• Power supply:220~240V, 50Hz, 1Ph

• Courant:1,0 – 10,2 A

• Amperage:12.5A

• Power (Heat 1):3.41 – 14.33 kW

• Power consumption (Heating 1):0.22 – 2.33 kW

• COP (Hot 1):15.5 – 6.15

• Power (Heat 2):3.28 – 12.25 kW

• Power consumption (Heating 2):0.39 – 2.27 kW

• COP (Hot 2): 8.41 – 5.40

• Power (Heat 3):2.85 – 10.66 kW

• Power consumption (Heating 3):0.36 – 2.08 kW

• COP (Hot 3):7.98 – 5.13

• Power (Cold):3.20 – 7.90 kW

• Absorbed power (cold):0.43 – 1.80 kW

• COP (Cold):7.44 – 4.39

• Water flow:5 – 7 m³/h

• Water connection diameter: 50 mm

• Operating temperature:-25 – 43 °C

• Refrigerant gas / Quantity:R32 / 1.3 kg

• CO2 equivalent: 0.9 t

• Refrigerant gas pressure (Min./Max.):1.5 / 4.15 MPa

• Dimensions:905 x 425 x 670 mm

• Dimensions emballage:1120 x 452 x 845 mm

• Net / Gross Weight:53 / 70 kg

• Sound level:38 – 48 dB(A)

• Waterproof level:IPX4

• Control: LCD control panel on the device + WiFi via smartphone app

• Recommended pool size: up to 60m²

• following conditions:

– Heating 1: Inlet/outlet water temperature: 26°C / 28°C; Ambient temperature: 26°C / Hum. 70%

– Heating 2: Inlet/outlet water temperature: 26°C / 28°C; Ambient temperature: 15°C / Hum. 70%

– Heating 3: Inlet/outlet water temperature: 26°C / 28°C; Ambient temperature: 7°C / Hum. 70%

– Cold: Inlet/outlet water temperature: 28°C / 26°C; Ambient temperature: 35°C / Hum. CN
